TJF-Q180V Medical Endoscope Therapeutic Video Duodenoscope With 4.2mm Working Channel
  • TJF-Q180V Medical Endoscope Therapeutic Video Duodenoscope With 4.2mm Working Channel
  • TJF-Q180V Medical Endoscope Therapeutic Video Duodenoscope With 4.2mm Working Channel
  • TJF-Q180V Medical Endoscope Therapeutic Video Duodenoscope With 4.2mm Working Channel
  • TJF-Q180V Medical Endoscope Therapeutic Video Duodenoscope With 4.2mm Working Channel
  • TJF-Q180V Medical Endoscope Therapeutic Video Duodenoscope With 4.2mm Working Channel

TJF-Q180V Medical Endoscope Therapeutic Video Duodenoscope With 4.2mm Working Channel

Model Number TJF-Q180V
Product Details
Type:
Flexible
Material:
Metals And Plastics
Condition:
Good
Usage:
Medical Diagnosis
Field Of View:
Wide Angle
Image Resolution:
High Definition
Light Intensity:
High
Field Of View:
Field Of View: Wide Angle
Highlight:

TJF-Q180V Medical Endoscope

,

Therapeutic Video Duodenoscope

,

TJF-Q180V Video Duodenoscope

Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Negotiable
Packaging Details
standard packaging
Delivery Time
5-7 day
Payment Terms
T/T etc.
Product Description

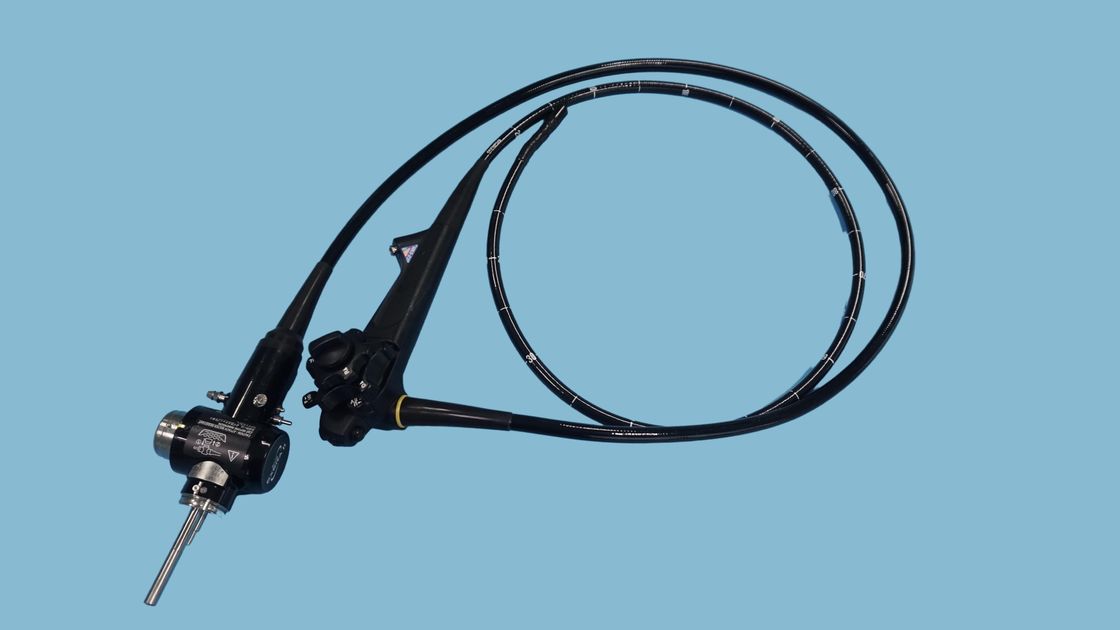

TJF-Q180V Therapeutic Video Duodenoscope With 4.2mm Working Channel



1. Function Introduction:





Olympus TJF-Q180V -- Therapeutic video Duodenoscope, 4.2mm working channel, equipped with Olympus innovative V-groove clamp elevator, TJF-Q180V enables ERCP device replacement and securely locks guide wires.







  • Unique special machinery, convenient and fast Guidewire exchange and dedicatedV-System ERCP Devices

  • High image quality with sharp, crisp details, and large display size.

  • Narrow Band Imaging enhances observation of the mucosa and capillaries.

  • Fully compatible with the CV-160 and 140; use of CV-180 enables the full feature set.

  • Scope ID function stores individual scope information in the built-in memory chip and displays it on the monitor.







2. Parameters Of TJF-Q180V Duodenoscope





  • Model: TJF-Q180V

  • Field of view: 100°

  • Outer Diameter: 13.7mm

  • Working length: 1,240mm

  • Total Length: 1,550mm

  • Angulation range:  Up 120°

  • Down 90°

  • Right 110°

  • Left 90°





Compatible con/Compatible Of TJF-Q180V Duodenoscope:





  • Olympus CV-160/CV-140/CV-180





TJF-Q180V Medical Endoscope Therapeutic Video Duodenoscope With 4.2mm Working Channel 0





Four Major Flexible Endoscope Structures





  • Control body

  • Insertion tube

  • Bending section/distal tip

  • Light guide connector
