Endoscopy Processor
>
|

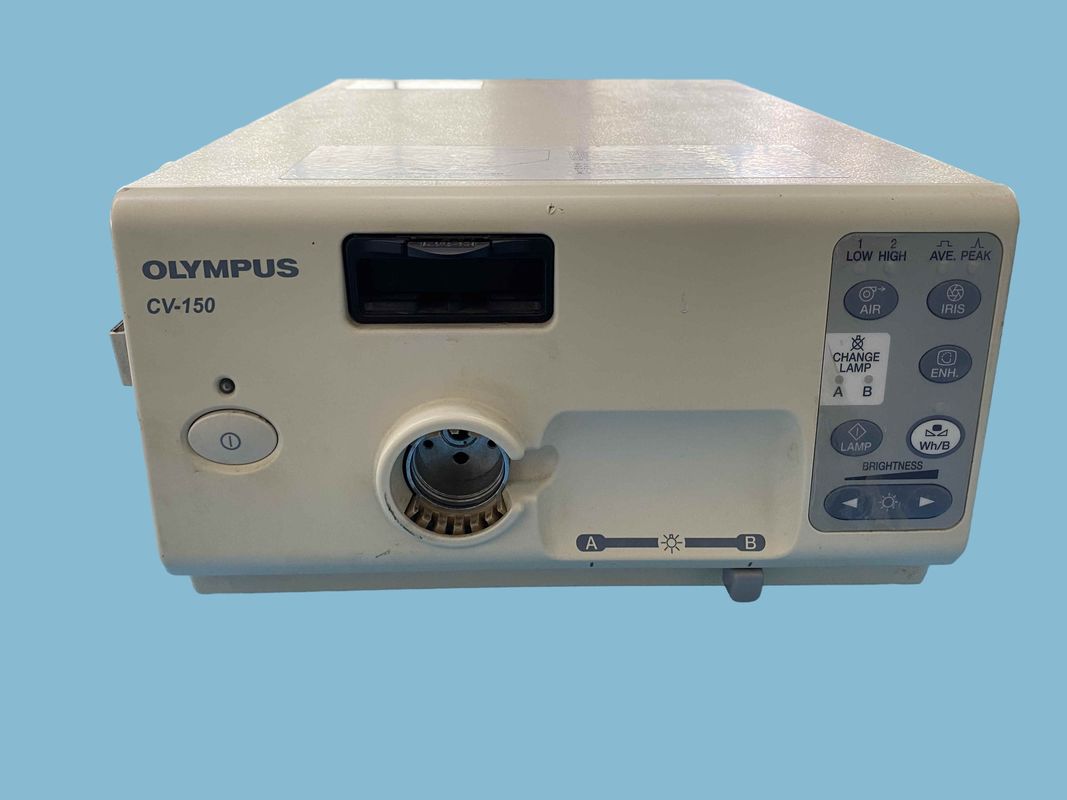

| Model Number | CV-150 |
Video signal output: Y/C, RGB, VBS composite, and XGA signal: simultaneous output is possible. White balance adjustment: By pressing the white balance switch on the front panel, automatic white balance can be performed. Color tone adjustment: R Control (±7steps), B Control (±7steps) Iris Mode Selection: Average normal observation, peak (when focusing on and/or observing a small bright area) Image Enhancement Setting: Fine patterns or edges in the endoscopic images can be enhanced electrically to increase the image sharpness, Either the structural enhancement or edge enhancement can be selected.
Switching of lamps: Manual
Lamp A: 150 W halogen lamp
Lamp B: (MD-151: JCM 15-150FP, USHIO)
Lamp life: Approx. 50 hours of continuous use. When used intermittently, the lamp life may vary slightly
Ignition: Switching regulator
Light output adjustment: Light-path diaphragm control
Cooling: Forced-air cooling
HK FY-MED, advocating the concept of environmental protection and saving, aims to improve the quality of endoscopic products and the service life of the products, thus helping customers to save costs. In addition, we are committed to developing endoscopic equipment and accessories for a long time so as to meet the needs of our customers. We believe that our long time working in the field of endoscopy will enable us to take our service in the field of endoscopy to the next level.
The processor has a signal processing circuit that is provided with a digital signal processor. The digital processor generates a coarse video signal that is indirectly displayable on a video screen from image signals generated by a charge coupled device sensor .An auxiliary circuit has a correction circuit that generates another coarse video signal that is directly displayable on the video screen included for the following: (a) video endoscope (b) a camera for an endoscope.
