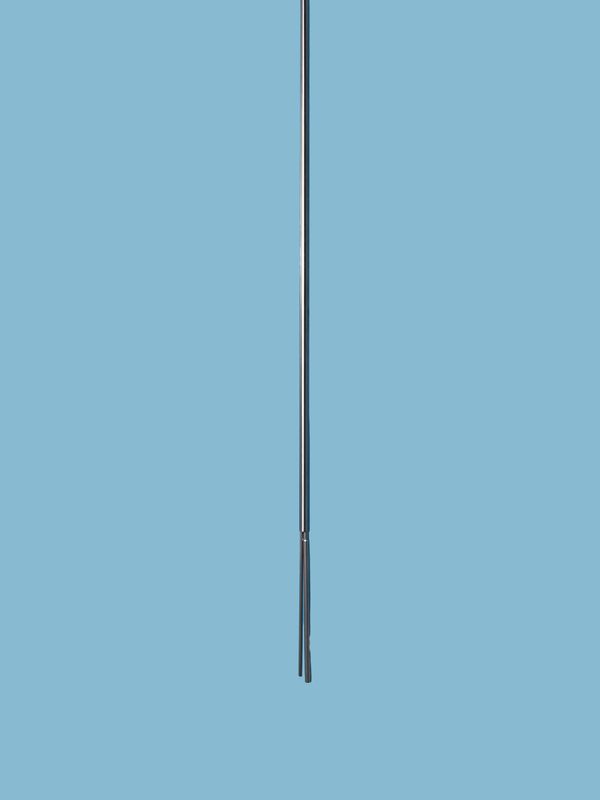

Rigid Endoscope Parts
>
|
| Model | Specification(mm) | Inner D tube(mm) | Inner tube 1(mm) | Inner tube 2(mm) | |
| 1 | wolf:8701.534 | external diameter:3.07 | D:1.38*1.25*500 | 0.72*0.6*500 | |
| 2 | wolf:8702.534 | external diameter:3.7 | D:1.82*1.62*600 | 1.0*0.9*600 | |
| 3 | wolf:8708.534 | external diameter:3.7 | D:1.5*1.1*600 | 1.55*1.4*600 | 1.0*0.9*600 |
| 4 | wolf:8708.401 | external diameter:4.25 | D:2.0*1.38*600 | 1.38*1.2*600 | |
| 5 | wolf:8703.534 | external diameter:4.4 | D:2.28*1.98*600 | 1.55*1.40*600 | |
| 6 | wolf:8705.402 | external diameter:4.7 | D:2.28*1.98*600 | 1.38*1.22*600 | |
| 7 | wolf:8704.524 | external diameter:4.7 | D:3.05*2.33*600 | 1.55*1.40*600 | |
| 8 | wolf:8968.403 | external diameter:4.7 | D:3.05*2.33*600 | 1.55*1.40*600 | |
| 9 | external diameter:3.4 | D:2.0*1.62*600 | 1.0*0.9*600 | ||
| 10 | olympus: | external diameter3.1 | D:1.5*1.32*0.08*600 | 0.9*0.8*600 | |
| 11 | schoelly:410611a | external diameter:4.3 | D:2.5*1.97*600 | 1.55*1.40*600 | |
| 12 | schoelly | external diameter:3.5 | D:1.74*1.58*500 | 0.94*0.7*600 | |
| 13 | storz:27000L | external diameter:3.3*2.7 | D:1.66*1.55*600 | 1.0*0.9*500 | |
| 14 | storz:27001L | external diameter:4.0 | D:2.14*2.0*600 | 1.3*1.1*600 | |
| 15 | storz:27002L | external diameter:4.5 | D:2.14*2.0*600 | 1.3*1.1*600 | |
| 16 | storz:27010L | external diameter:3.27*2.5*450 | 1.2*1.1*500 | 1.0*0.9*500 | 0.9*0.8*500 |
| 17 | olympus :A37025A | external diameter:4.23*0.2 | D:2.8*2.32*600 | 1.38*1.22 | |
| 18 | olympus :A29040A | external diameter:4.0 | D:1.48*1.59*600 | 1.55*1.40*600/1.4*1.2*600 | |
| 19 | olympus :A29042A | external diameter:4.5 | D:2.27*2.1*600 | 1.57*1.40*600 | |
| 20 | olympus | external diameter:3.75 | D:2.05*2.0*600 | 1.13*1.0*600 | |
| 21 | external diameter:4.7 | D:3.05*2.33*600 | 1.55*1.40*600 | ||
| 22 | external diameter:3.9 | D:2.28*1.98*600 | 1.4*1.2*600 | ||
| 23 | external diameter:3.5 | 1.6*0.06/1.3*1.17*220 | 1.17*0.06/1*0.86*220 | , | |
| 24 | external diameter:4.45*3.5 | D:2.28*1.98*600 | 1.38*1.20*600 | ||
| 25 | external diameter:3.3*0.15*260 | D:1.35*1.2*260 | 1.28*1.12*260 | ||
| 26 | external diameter:3.0*3.0*2.8*250/400 | D:1.85*0.95 | 1.4*1.22 | ||
| 27 | external diameter:4.1 | D:2.0*2.0/1.9*1.9 | 1.2 | ||
| 28 | external diameter:3.75*3.25 | D:2.05*2.0*600 | 1.13*1.0*600 | ||
| 29 | external diameter:3.73*3.4 | D:2.14*2.0*600 | 1.2*1.0 | ||
| 30 | hank sasswolf | external diameter:3.6*3.3 | D:2.25*1.65*600 | 1.4*1.2*600 | |
| 31 | external diameter:4.45*3.5 | D:2.28*1.98*600 | 1.38*1.2*600 |
Rigid Endoscope Parts
Rigid scopes consist of the eyepiece, light post, ocular assembly, rod lenses, spacers, objective assembly, and other important accessories. The structure of the rigid scope seems simple, but in fact, it contains many small and delicate accessories, and these small accessories are an important and indispensable part of its composition of it.
