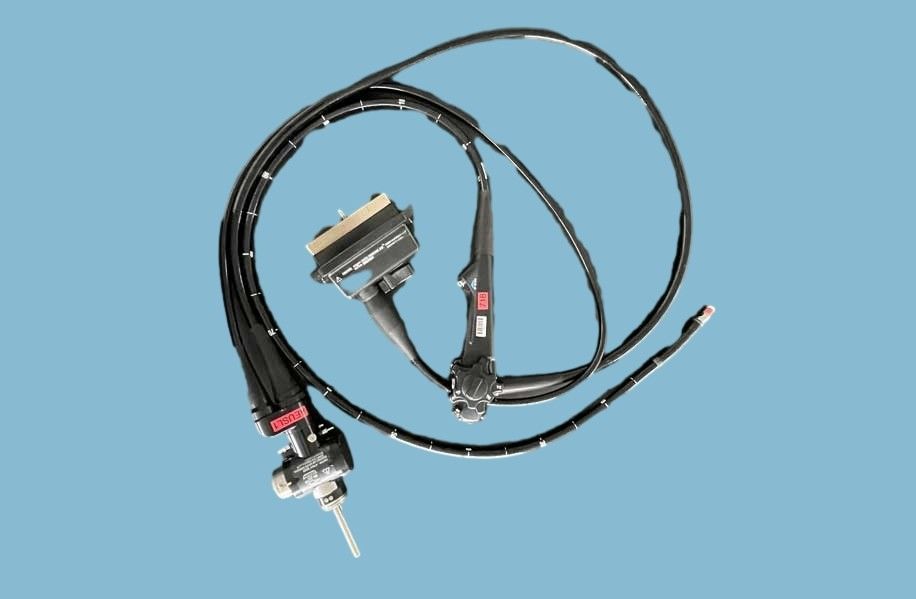

The GF-UE160-AL5 has the advantage of 360° full scanning plane capability with high resolution images and excellent maneuverability. Combining the superiority and maneuverability of the endoscope itself with superb ultrasound image quality and advanced ultrasound functions provides better ultrasound image quality and enhanced diagnostic capabilities.
Model: GF-UE160-AL5
Field of view: 100°
Outer Diameter: 11.8mm
Working length: 1,250mm
Channel Diameter: 2.2mm
Angulation range:
Up 130°
Down 90°
Right 90°
Left 90°
Olympus Ultrasound System EU-ME2
Advancements in flexible endoscopy have rapidly progressed this technology to the next level of sophistication. Complex endoscopes and accessories have expanded the capabilities of performing surgery and treatments in a less invasive manner.
A flexible endoscope is like a Swiss Army knife that is brilliantly designed into a compact device that includes a suction channel, light and image guides, irrigation channels, and biopsy channels capable of passing instruments through.
Control body
Insertion tube
Bending section/distal tip
Light guide connector
