Endoscopy Processor
>
|
| Model Number | UHI-2 |
The Olympus UHI-2 is used to inflate cavities in the body to provide surgeons with more space to work during surgery. Most inflators use carbon dioxide to inflate cavities because the gas is not flammable, is non-colored, and is soluble in the body, which also greatly enhances the safety of the procedure. Inflators can be used for radiological imaging and endoscopic procedures.
Brand: Olympus
Type: Endoscopy System
Model: UHI-2
Height: 6.5 in (16.5 cm)
Width: 11.6 in (29.5 cm)
Depth: 13.2 in (33.5 cm)
Weight: 22 lbs (10 kg)

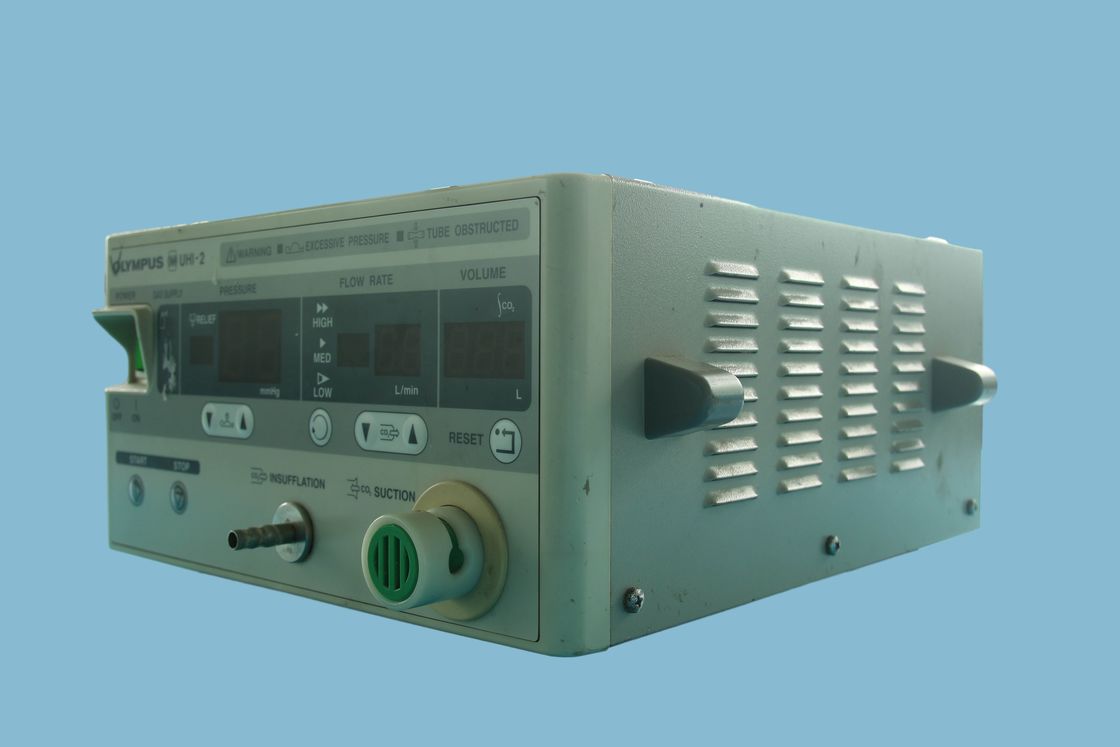

The Olympus UHI-2 is a High-Flow insufflator with a built-in smoke evacuation system. It provides optimum abdominal conditions which allow for a more focused surgery. The UHI-2 has a large full panel display for quick status checks, a 3-step flow rate setting (Hi, Med, and Low) for fast setup, and an automatic overpressure release valve.
The Olympus UHI-2 is an endoscopic insufflator. Olympus insufflators are used to inflate a cavity within the body to give more workroom for the surgeons. Most insufflators use CO2 to inflate the cavity because it is non-flammable, colorless, and dissolves into the body. Insufflators can be used in radiological imaging as well as endoscopic procedures.
Maximum flow rate of 20 L/Min
Easy-to-Read displays
Excellent visibility, even during electrosurgery
3 Main flow settings
Built-in smoke evacuation
Audible and visual pressure warnings
Maximum Flow Rate: 20 L/Min
Bacterial Filter: Yes
Type (Configuration): Electronic
Display: Yes
Low-Pressure Warning: Yes
Flow Options:
Low: 0.5 - 1.5 L/Min
Medium: 1.5 - 9 L/Min
High: 10 - 20 L/Min
Alert Type: Audible and Visual
Activation Press: Set Point + 5
Time Delay (Breath Detector): 0
Electronic Pressure Reduction: Yes
Insufflation Volume Indicator: Yes
Peritoneal Pressure Indicator: Yes
Gas Used: CO2
Other:
