| Model Number | 2215 |

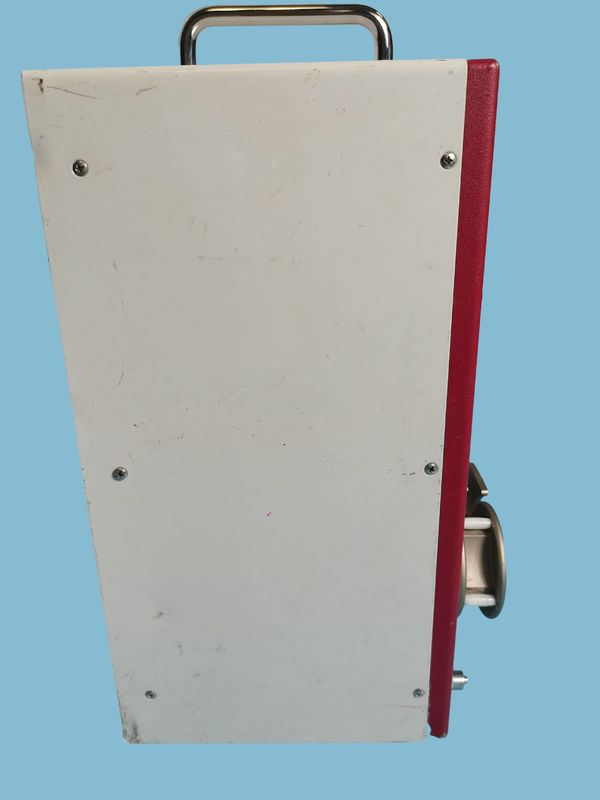

LAPARO PUMP 2215 -
Effective irrigation and suction in
within the framework of laparoscopic, minimally invasive
surgery.
- Easy handling due to simplicity of the instrument
- Optimal suction and lavage performance
- Compatibility with suction-
Compatible with suction and lavage instruments with integrated valves,
Particularly compatible with the modular suction/ irrigation arm of the R. Wolf
- High degree of safety through intelligent pressure control
- Simple fastening to flushing columns or
easy mounting on flushing stands or instrument carts
Power supply connection 220-240 V AC, 50/60 Hz
Power consumption 55 VA
Dimensions (W x H x D) 143 x 317 x 170 mm
Maximum flushing capacity: 1.8 l/min, suction: 1.8 l/min
Maximum flushing pressure: 400 mmHg (±50 mmHg)
Vacuum, minimum -60 kPa (-10 kPa)
Weight approx. 6 kg
Do not place the endoscope together with other instruments and avoid touching other parts with the insertion part.
Wait until the endoscope angle returns to the 0-degree state before pulling out.
Since the insertion part is long, please be careful when cleaning and storing it, and be sure to confirm that it is not stuck beforehand.
When sterilizing EVIS endoscopes with ethylene oxide, remove the waterproof cap; when sterilizing other endoscopes with ethylene oxide, put on the ETO cap.
Wait until the endoscope angle returns to the 0-degree state, then pull out from the trocar needle and trocar.
When adjusting the angle of the insertion part, the angle should not be smaller than the range indicated in the instruction manual.
Please keep the sheath as straight as possible during operation.
Hold the insert gently and handle it carefully when taking it out.
