Endoscopy Processor
>
|
| Model Number | PSD-60 |

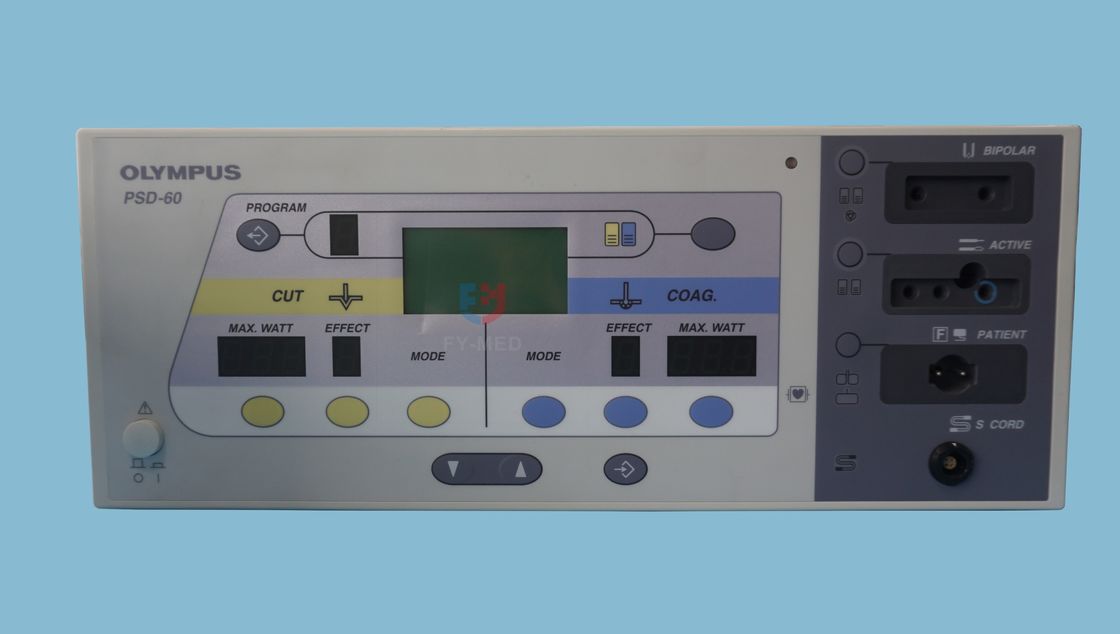

| MODEL | Olympus PSD-60 |
| Application scope | Endoscopic and open surgery |
| RF Output | Monopolar and bipolar |
| Frequency | 350-447 Hz |
| Monopolar modes | AUTO CUT 200 W |
| ENDO CUT 200 W | |
| Forced Coag 120 W | |
| Soft Coag 120 W | |
| Argon Plasma Coag 120 W | |
| Bipolar Modes | Soft Coag with an Auto Start 120W |
| Type and degree of protection | Class I, type CF |
| Dimensions | 417 x 165 x 375 mm |
| WEIGHT | 9.7 kg |
Do not place the endoscope together with other instruments and avoid touching other parts with the insertion part.
Wait until the endoscope angle returns to the 0-degree state before pulling out.
Since the insertion part is long, please be careful when cleaning and storing it, and be sure to confirm that it is not stuck beforehand.
When sterilizing EVIS endoscopes with ethylene oxide, remove the waterproof cap; when sterilizing other endoscopes with ethylene oxide, put on the ETO cap.
Wait until the endoscope angle returns to the 0-degree state, then pull out from the trocar needle and trocar.
When adjusting the angle of the insertion part, the angle should not be smaller than the range indicated in the instruction manual.
Please keep the sheath as straight as possible during operation.
Hold the insert gently and handle it carefully when taking it out.
