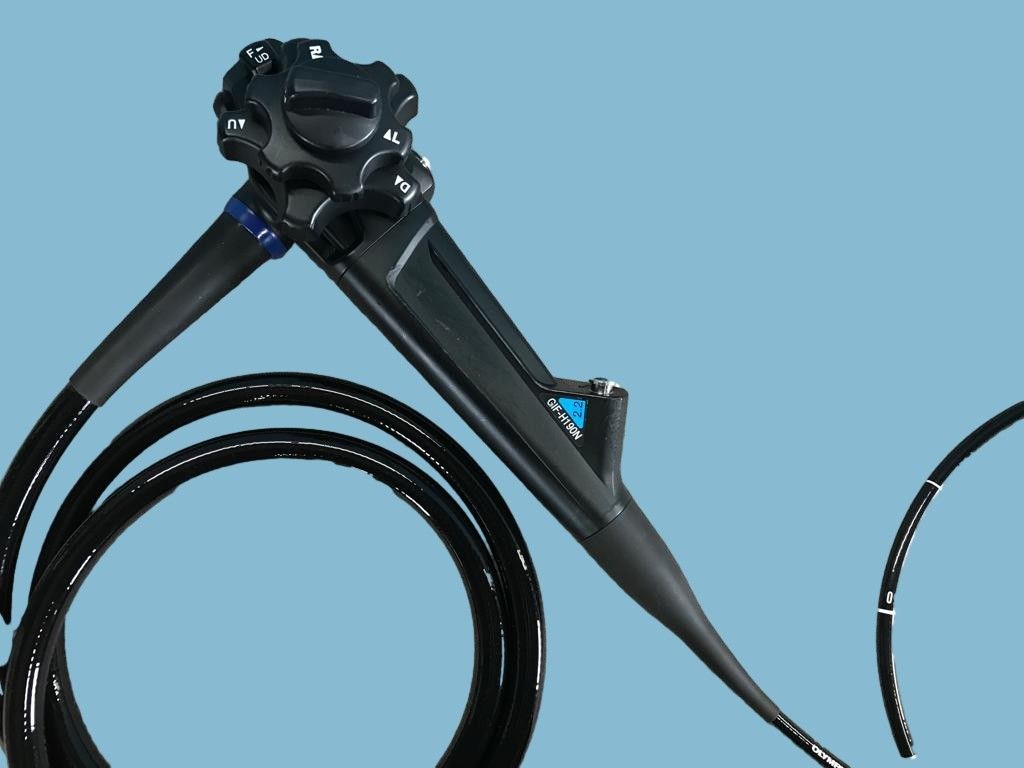

Key features of the GIF-H190: Improved functionality: With an external diameter of only 9.2 mm, the GIF-H190 has a slimmer design than its predecessor for improved ease of use. Brighter, more powerful images: HDTV and narrow-band imaging (NBI) allow for more detailed examination and observation; NBI offers significantly improved brightness and twice the viewing distance compared to conventional oscilloscopes.
Clear view of procedures: The integrated waterjet channel maintains a clear view during hemostasis and complex procedures.
The waterproof design of the connector minimizes installation work in front of and between housings and eliminates the need for a waterproof cover.
Channel Width: 2.8
Working Length: 1030
Field of View: 140
Depth of Field: 2-100
Outer Diameter: 9.2
Outer Diameter Insertion Tube: 9.2
Max Angulation Up: 210
Max Angulation Down: 90
Max Angulation Right: 100
Max Angulation Left: 100
Advancements in flexible endoscopy have rapidly progressed this technology to the next level of sophistication. Complex endoscopes and accessories have expanded the capabilities of performing surgery and treatments in a less invasive manner.
A flexible endoscope is like a Swiss Army knife that is brilliantly designed into a compact device that includes a suction channel, light and image guides, irrigation channels, and biopsy channels capable of passing instruments through.
Control body
Insertion tube
Bending section/distal tip
Light guide connector
