Flexible Scope
>
|

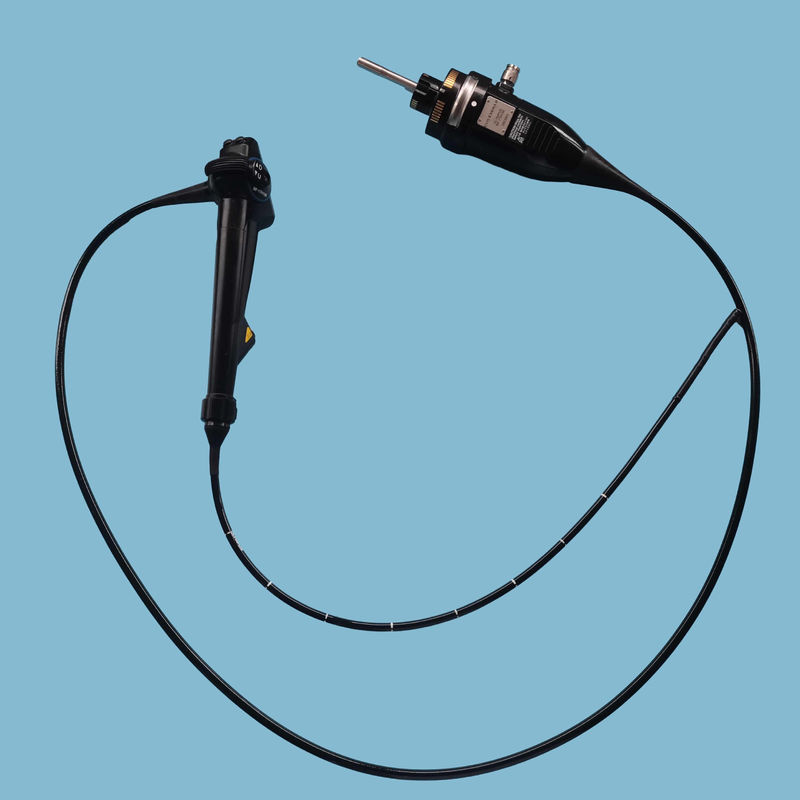

The EVIS EXERA CF-Q160L Sigmoidoscope offers excellent image quality and a large display for greater image detail. 140° field of view and four-way angulation allow for a more complete and comprehensive examination of the sigmoid colon. The ergonomically designed handle enhances the manoeuvrability of the tube, while the spacious 3.7 mm diameter channel accommodates a wide range of endoscopic equipment while maintaining suction capability.
Channel Width: 3.7
Working Length: L: 1680
Field of View: 140°
Direction of View: Forward viewing
Depth of Field: 3-100°
Outer Diameter: 12.8
Outer Diameter Insertion Tube:L/ I: 12.8 S: 13.2
Max Angulation Up&Down: 180°
Max Angulation L/R: 160°
Advancements in flexible endoscopy have rapidly progressed this technology to the next level of sophistication. Complex endoscopes and accessories have expanded the capabilities of performing surgery and treatments in a less invasive manner.
A flexible endoscope is like a Swiss Army knife that is brilliantly designed into a compact device that includes a suction channel, light and image guides, irrigation channels, and biopsy channels capable of passing instruments through.
Control body
Insertion tube
Bending section/distal tip
Light guide connector
