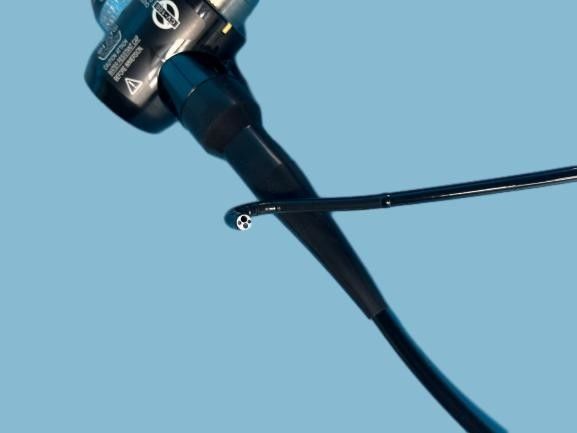

BF-P150 Bronchoscope Flexible Scope 180 deg with 2.0mm Instrumental Channel

BF-P150 Bronchoscope Flexible Scope 180 deg with 2.0mm Instrumental Channel


1. Function Introduction:


Slim 5.3 mm distal diameter and 5.4 mm insertion tube diameter facilitate smooth bronchial insertion. High-quality images provide a clear, sharp view of the inner tracheobronchial tree. Spacious 2.0 mm diameter instrument channel accommodates standard endobronchial accessories. Compatible with electrocautery and laser therapy. Fully compatible with the Olympus CV-150 video processor.


2. Parameters Of Olympus Video Brochoscope BF-1TQ180


Angle of view: 120°
Direction of view: 0°
Depth of field: 3-100mm
Outer Diameter of the distal end: 5.3mm
Outer diameter of the insertion part: 5.4mm
Augulation range of the Bending section: up 180°, down 130°
Overall length(working): 870mm(600mm)
Instrumental channel:
Inner diameter2.0mm
Minimum visible distance: 3.0mm from distal end









HK FY-MED, advocating the concept of environmental protection and saving, aims to improve the quality of endoscopic products and the service life of the products, thus helping customers to save costs. In addition, we are committed to developing endoscopic equipment and accessories for a long time so as to meet the needs of our customers. We believe that our long time working in the field of endoscopy will enable us to take our service in the field of endoscopy to the next level.
