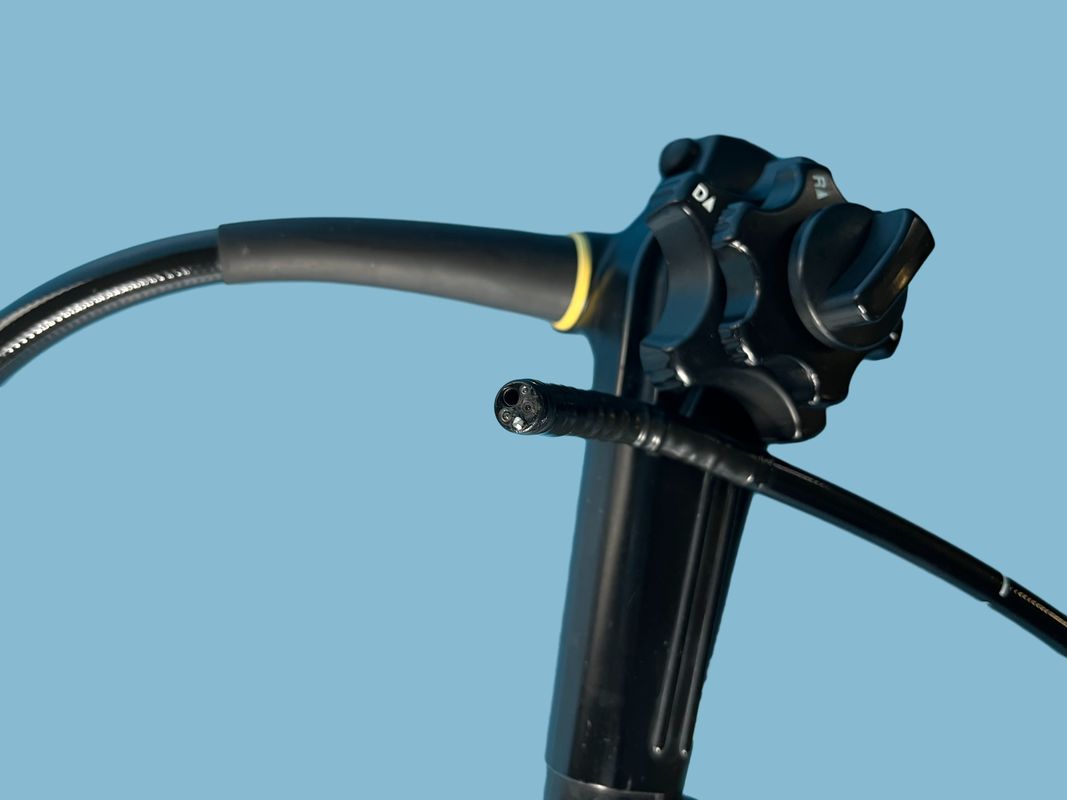

Advanced GIF-Q150 1030mm Medical Endoscope For Upper GI Procedures

Advanced GIF-Q150 1030mm Medical Endoscope for Upper GI Procedures


1. Function Introduction:

GIF-Q150 is ideal for routine endoscopic examinations of the upper gastrointestinal tract. Slim, with a diameter of only 9.2 mm, this endoscope provides high quality images and displays a large endoscopic image.

Distinctive features:

• Gastrovideoscope provides sharp, clear, high-quality images with natural color reproduction and large endoscopic images;

• Improved insertion capability with a thin diameter of both the distal end and insertion tube of only 9.2 mm;

• Wide instrument channel diameter of 2.8 mm ensures compatibility with a wide range of endotherapy instruments;

• The possibility of bending the insertion tube in 4 directions (210° up, 90° down, 100° to the right and 100° to the left) provides a complete view of the upper gastrointestinal tract;

• Extraordinarily wide field of view of 140° provides a comfortable view of wide spaces of the mucous membrane;

• The operator's hand grip is ergonomically designed to improve the maneuverability of the endoscope. Conveniently located tilt angle adjustment knobs and user-programmable control buttons enhance performance.
