Excellent image quality

High-resolution image quality.

NBI (Narrow Band Imaging)
NBI is an optical image enhancement technology that improves the visualization of vessels on the mucosal surface.

Slimmer outer diameter
Featuring slimmer design than previous scope BF-P150*, the 4.8 mm distal end outer diameter helps support insertion to bronchi, while maintaining a 2.0 mm instrument channel for a diverse range of purposes.
*Bronchovideoscope OLYMPUS BF TYPE P150

Waterproof connector
The newly designed connector is fully submersible and therefore eliminates the need for a water-resistant cap, while minimizing the risk of damage due to accidental immersion.

Specification of BF-Q170

Field of view 120°

Direction of view Forward viewing

Depth of field 3-100 mm

Image quality Q-image

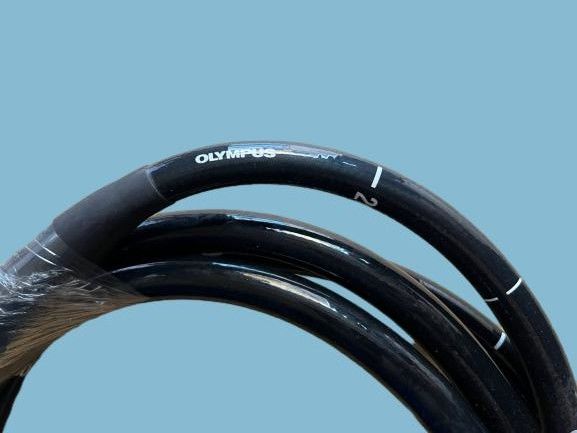

Insertion Tube Distal end outer diameter 4.8 mm

Distal end enlarged

Insertion tube outer diameter 4.9 mm

Working length 600 mm

Instrument Channel Channel inner diameter 2.0 mm

Minimum visible length 3.0 mm from the distal end

Direction from which EndoTherapy accessories enter and exit the endoscopic image

Bending Section Angulation range
