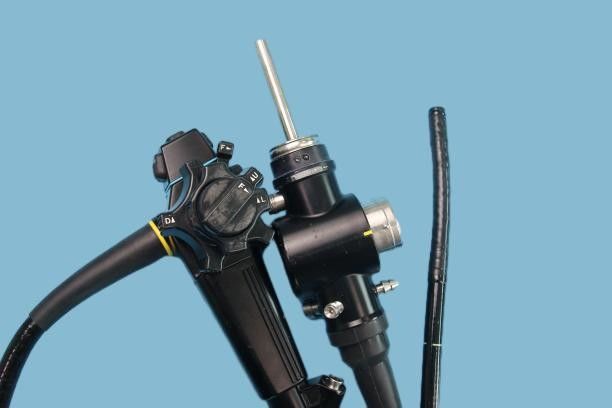

PCF-160 Colonoscope Medical Machines Medical Endoscope Equipment

PCF-160 Colonoscope Medical Machines Medical Endoscope Equipment

The flexibility of the variable stiffness insertion tube can be adjusted to suit the internal conditions and contours of the colon, simply by turning a knob below the control section
Slimmer than conventional colonoscopes with an 11.5mm outer diameter insertion tube, yet still features a channel with 3.2mm inner diameter that's suitable for routine colonoscopy
Superior image quality is delivered even in the expanded full height mode when combined with the dedicated CV-160 video system center
Extra-wide 140º field of view and extensive 4-way angulation (180º up/down and 160º left/right) enable complete and comprehensive examination of the colon
Ergonomically designed grip enhances scope maneuverability while redesigned easy-to-access knobs and user-selectable switches improve operability
Fully compatible with the CV-160/140/100
Scope ID function stores individual scope information and displays it on the monitor to facilitate endoscopy suite management

Optical System

Field of View 140º
Direction of View Forward
Depth of Field 3-100 mm
Distal End
Outer Diameter 11.3 mm
Insertion Tube
Outer Diameter 11.5 mm
Bending Section
Range of Distal End Bending Up 180º, Down 180º Right 160º, Left 160º
Working Length 1680 mm
Total Length 2005 mm
Instrument Channel
Inner Diameter 3.2 mm
Minimum Visible Distance 5.0 mm
