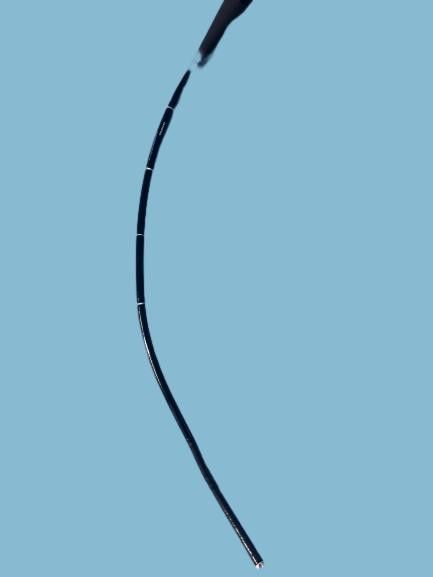

Lexible Cysto-Nephroscope Endoscope Of CYF-VHA Belong To Medical Flexible Endoscope

Lexible Cysto-Nephroscope Endoscope Of CYF-VHA Belong To Medical Flexible Endoscope

High-Definition (HDTV)
The ground-breaking CYF-VH is the first flexible cysto-nephroscope to provide a High-Definition image.
NBI (Narrow Band Imaging)
NBI with the CYF-VH/VHA/VHR is 20% brighter (compared
to the previous model CYF-V2) providing enhanced visualization of capillary networks and mucosal morphology

Specification for CYF-VHA

Optical System Filed of view 120º
Direction of view Forward viewing
Depth of field 3-50 mm
Insertion Tube Distal end outer diameter 8.1 Fr (2.7 mm)
Insertion tube outer diameter 16.5 Fr (5.5 mm)
Working length 380 mm
Instrument Channel Inner channel diameter 6.6 Fr (2.2 mm)
Bending Section Angulation range Up 220º/Down 130º
Total Length 660 mm
