Medical Endoscope
>
|

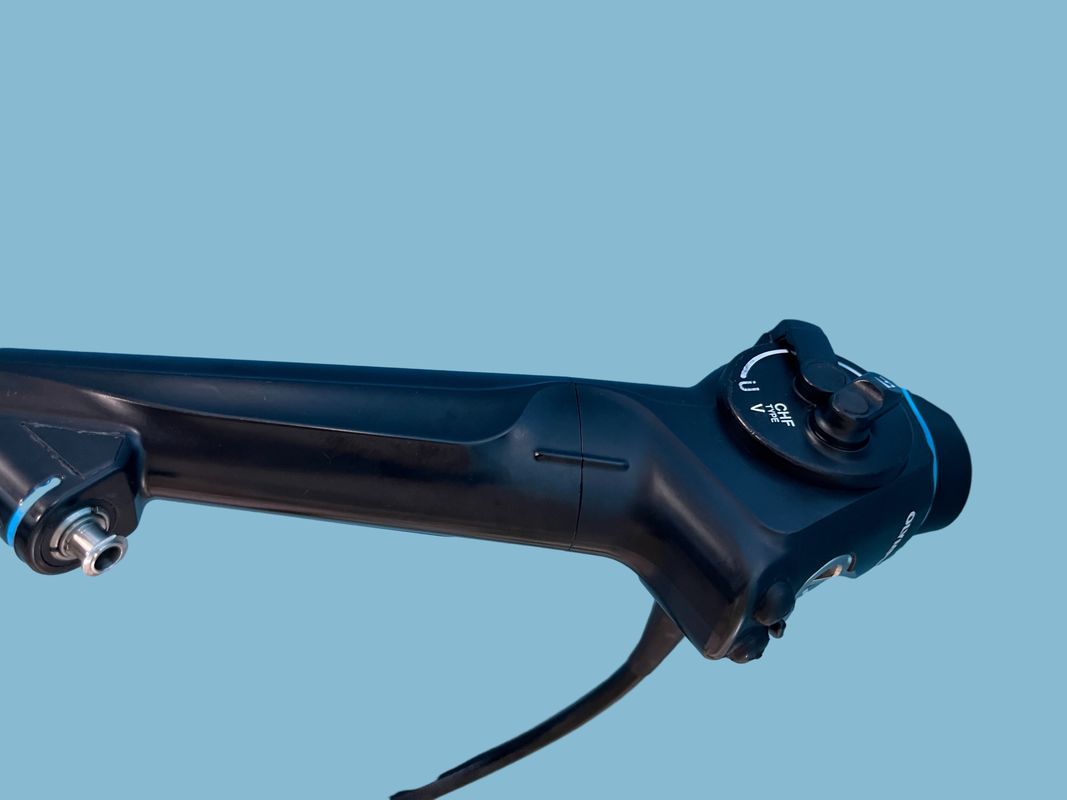

CHF-V provides a solution for percutaneous bile duct surgery by combining advanced imaging technology with a deep field of view. Improved visualization of the bile duct by using a CCD at the tip and reducing distortion No intraoperative focus due to extended depth of field.
Field of View: 120
Direction of View: Forward viewing
Depth of Field: 3 - 50 mm
Outer Diameter: 4.9 mm
Angulation RangeOuter Diameter: Up 160' / Down 130°5.2 mm
Working LengthTotal Length: 660mm
Minimum Visible Distance: 3 mm from distal end
Inner Diameter: 2.0mm
Advancements in flexible endoscopy have rapidly progressed this technology to the next level of sophistication. Complex endoscopes and accessories have expanded the capabilities of performing surgery and treatments in a less invasive manner.
A flexible endoscope is like a Swiss Army knife that is brilliantly designed into a compact device that includes a suction channel, light and image guides, irrigation channels, and biopsy channels capable of passing instruments through.
Control body
Insertion tube
Bending section/distal tip
Light guide connector
